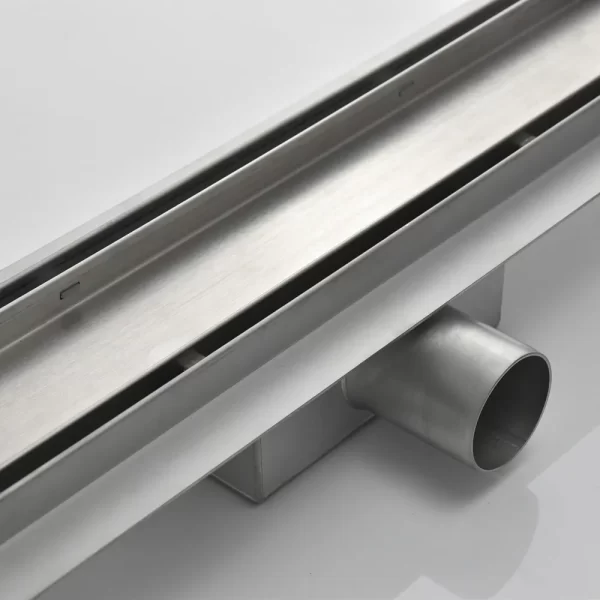

Linear Shower Drain With Tile Insert
This type of drain allows the shower floor to have a seamless appearance by integrating the drain with the surrounding tiles. This type of drain is particularly popular in modern and luxury bathrooms, where design and functionality go hand-in-hand.
- Description
- Inquiry
Description
Modern No.: DW-S1
This model is ready for shipping.
Specification:
| Length | 500mm | 600mm | 700mm | 800mm | 900mm | 1000mm |
| 20inch | 24inch | 28inch | 32inch | 36inch | 40inch | |
| Width(mm) | 70mm | |||||
| Depth(mm) | 25mm | |||||
| Material | Stainless steel 304 | |||||
| Thickness | Drain channel 1.2mm, grate 1.5mm | |||||
| Flow capacity | 35L/min | |||||
| Outlet diameter | 40mm (1 1/2″) | |||||
| Grate color | Silver brushed | |||||
| Accessories | Adjusted legs, hexagonal connector, hook, removable strainer, installation guide | |||||
Cetificate: ISO90001-2008, WATERMARK CERTIFICATE.
Warranty: 20 years Guarantee
Dimension drawing of work in shower drain:
